• 10 channels of PWM dimming (60 amps total).
• 8 channels of 8 amp lighting / resistive loads.
• 2 channels of 15 amp lighting / resistive loads.
• Status LED’s for each channel.
• Thermal, short circuit, and programmable overload
• Local electronic override capabilities.
• Reverse battery protected.
• LEN value 2.

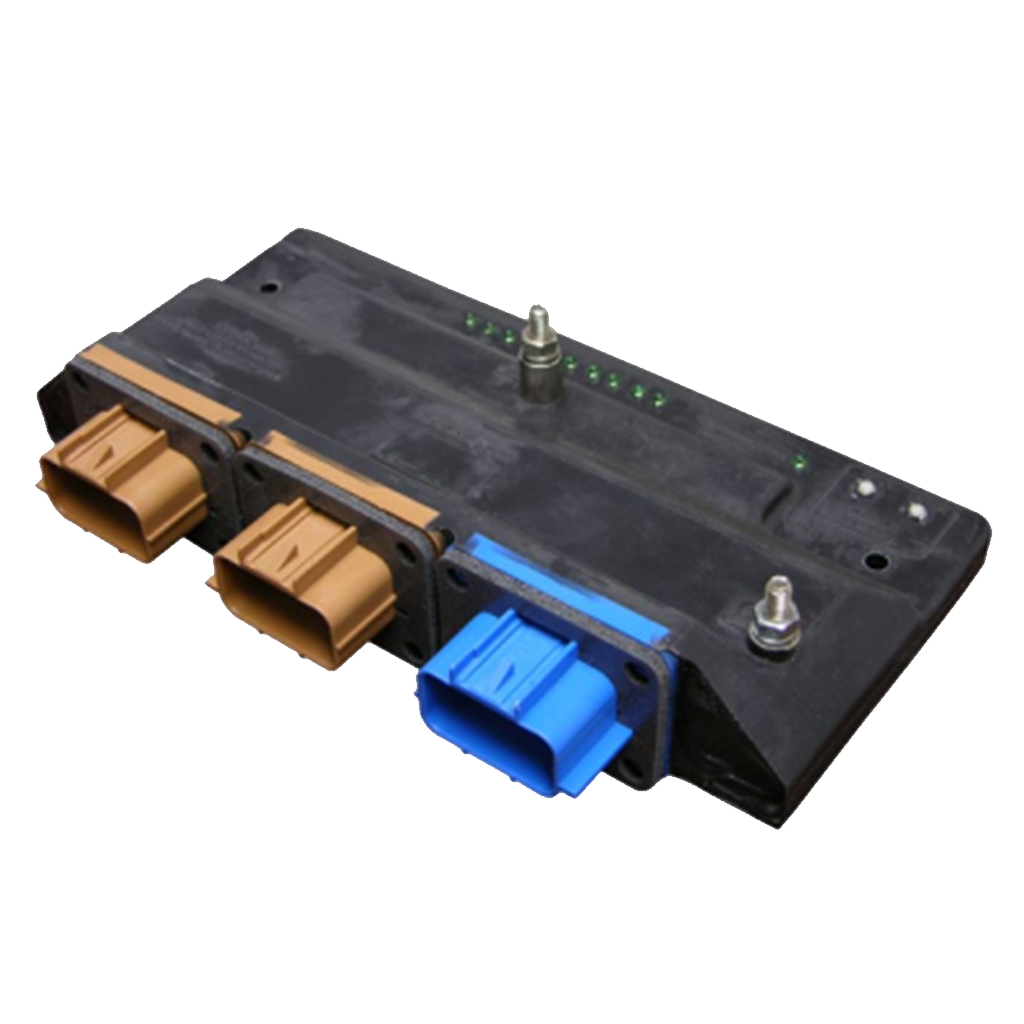

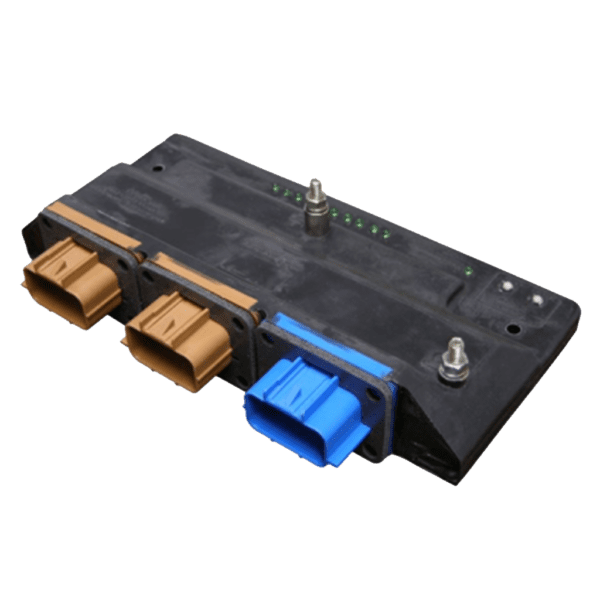

The E-Plex® 436MMX series is a 10 channel DC power distribution module. Eight channels are intended for
lighting/resistive loads handling up to 8 A each. Two channels are capable of driving lighting/resistive loads up
to 15 A each. The entire module is rated at 60 A max. All channels have built in dimming providing a flexible
solution for lighting without requiring additional external dimming hardware.
The 436MMX incorporates thermal, short circuit, and programmable overload protection in order to safeguard
the module against very rare or severe conditions. When E-Plex is not present, local electronic overrides
capabilities allow independent operation of the device loads which can be used for testing and verification
