• 6 channels with outputs capable to 15 A each
(50 A total).
• 2 channels with PWM dimming capabilities.
• Reverse battery protected.
• Status LED’s for each channel.
• Thermal, short circuit, and programmable
• Local electronic override capabilities.
• Designed for motor loads.
• LEN value 2.

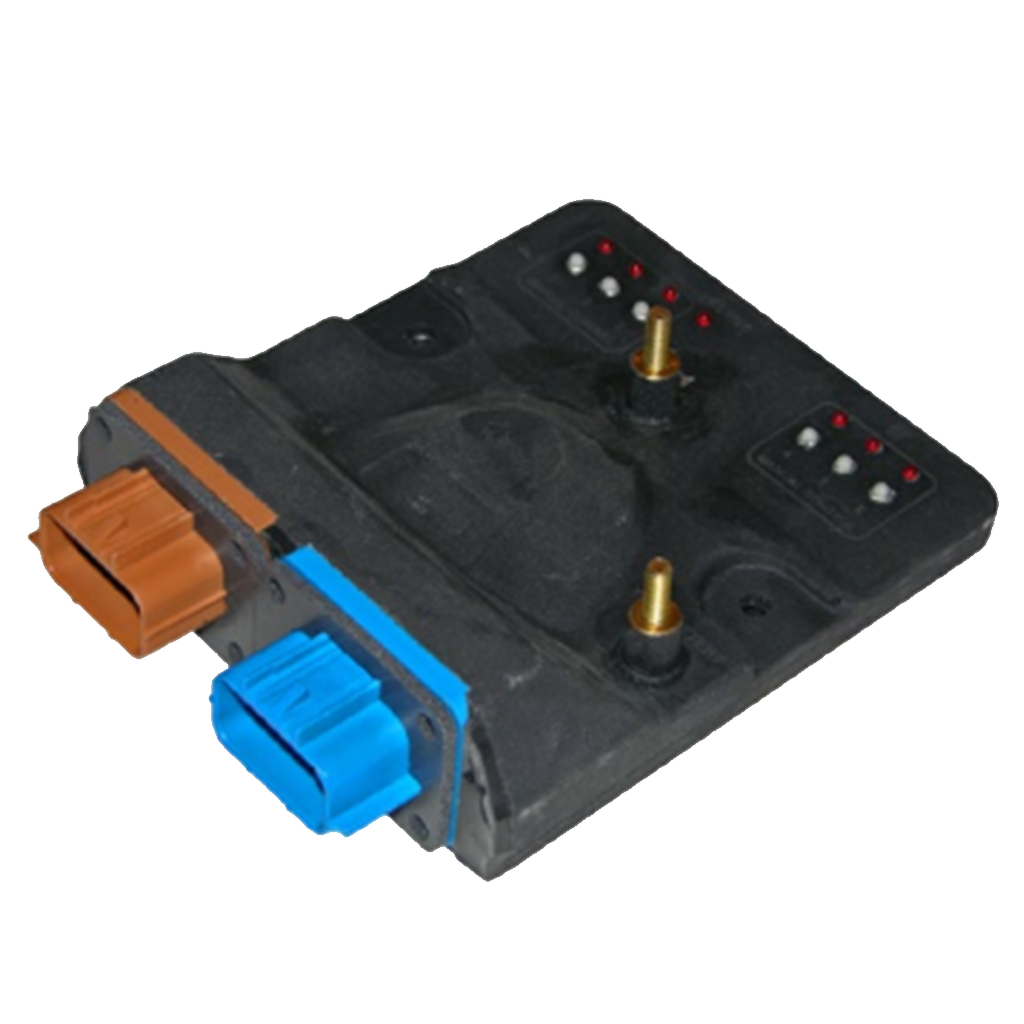

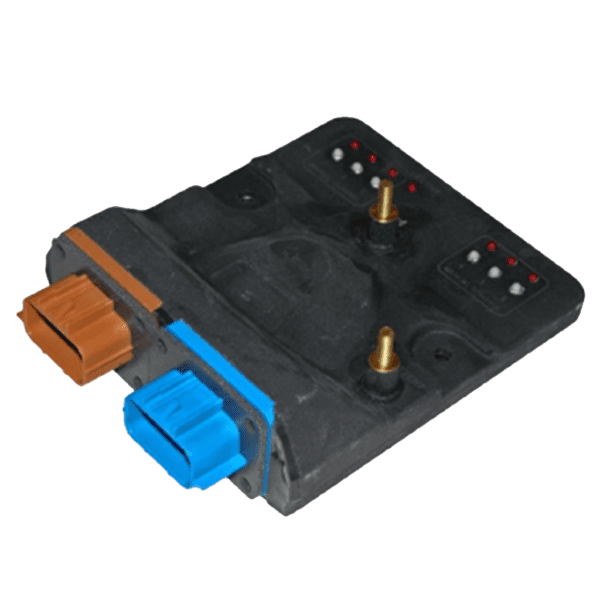

The E-Plex® 366HMM is a six channel DC power distribution module capable of handling loads of up to 15A
per channel or 50A total. The six channels can be utilized as either inputs, outputs, or a combination of both.
Two channels may be combined in order to handle larger amperage loads.
The 366HMM incorporates thermal, short circuit, and programmable overload protection in order to
safeguard the module against very rare or severe conditions. Local electronic override capabilities allow
independent operation of the device loads.
In addition, the 366HMM design allows for the ability to utilize up to two channels as dimmer circuits,
providing a flexible solution for lighting without requiring additional external dimming hardware.
NOTE: THIS MODULE IS REPLACED BY AN 805OPM WITH CUSTOM FIRMWARE.
The 805OPM replacement will not constitute any logic changes, however, wiring changes will have to be made unless purchased with the plug-and-play CA-HOI cable harness adapter.
