• 8 channels with outputs capable of up to 15 amps
each (50 amps total).
• Pairs of channels may be configured to operate in
• PWM dimming capability on all channels.
• Input capability on all channels.
• Reverse battery protected.
• Status LEDs for each channel.
• Thermal, short circuit, and programmable overload
• Local manual override capabilities.
• Designed for motor and high inrush current loads.
• E-Plex LEN value 2.

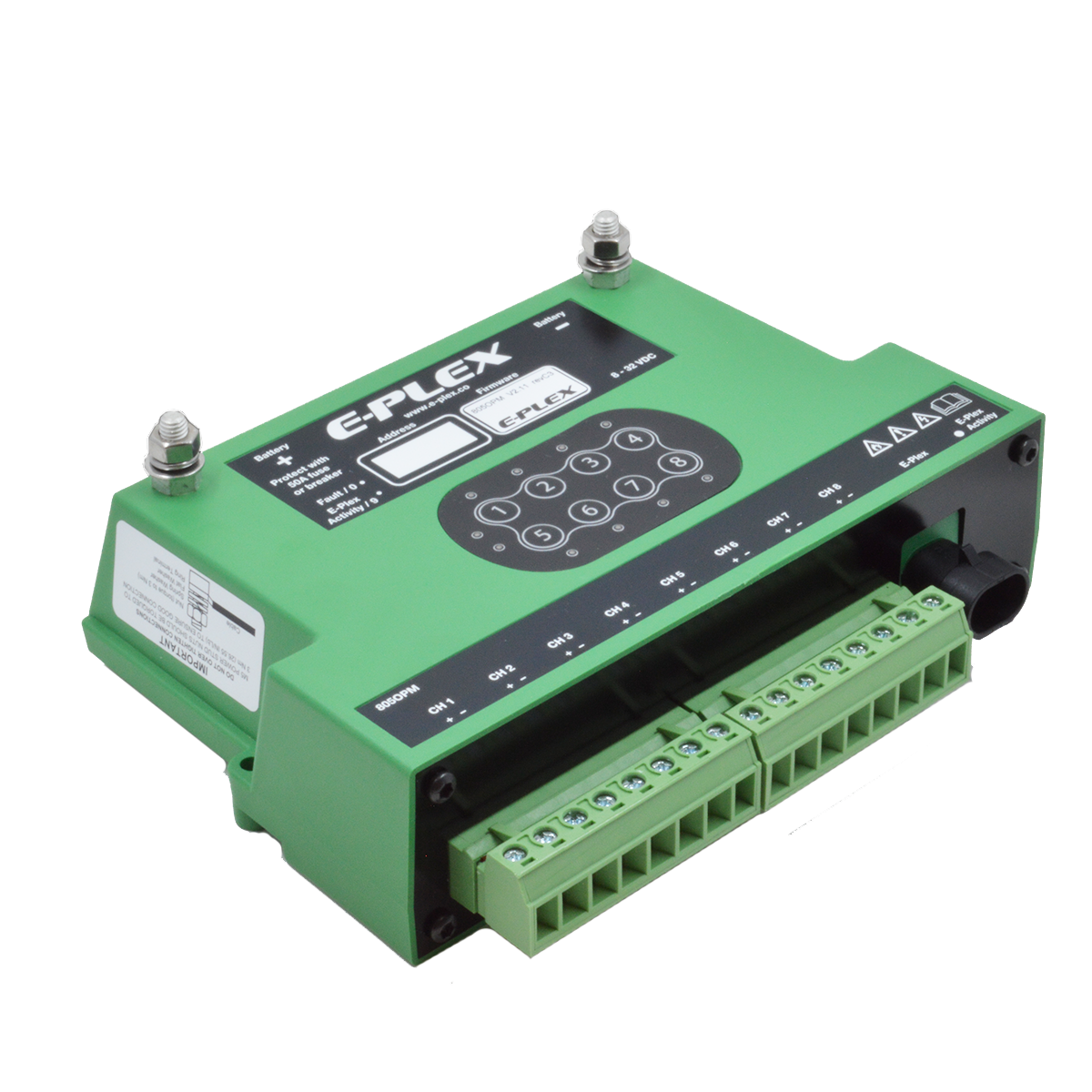

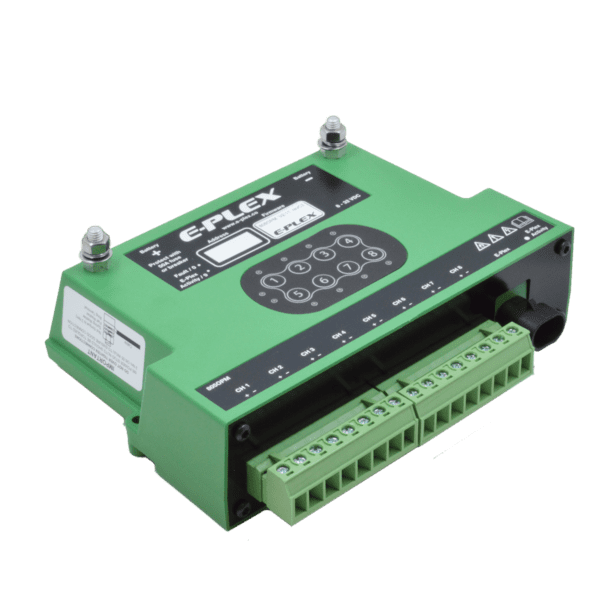

The E-Plex® 805OPM is an eight channel DC power distribution module capable of handling loads of up to
15 A per channel or 50 A total. The eight channels can be utilised as either inputs, outputs, or a combination
of both. Output channels may be paired in order to handle larger amperage loads.
The 805OPM incorporates thermal, short circuit, and programmable overload protection in order to
safeguard the module against incorrect wiring or load faults. Manual mode capabilities allow backup
operation of the device loads in the event that the E-Plex system goes offline.
In addition, the 805OPM design allows for the ability to utilise all channels as dimmer circuits, providing a
flexible solution for lighting control.
12 in stock (can be backordered)
