• 255 unique alpha-numeric characters with a
64-position touch glass display.
• System diagnostics and security lockout
• Electroluminescent (EL) backlight for night-time
• 128KB of onboard memory including a master
record of confguration data.
• Custom artwork overlays and bezel fnishes.

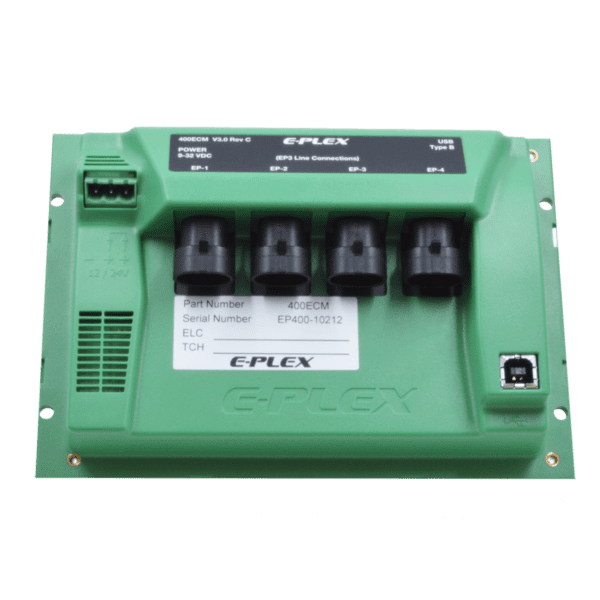

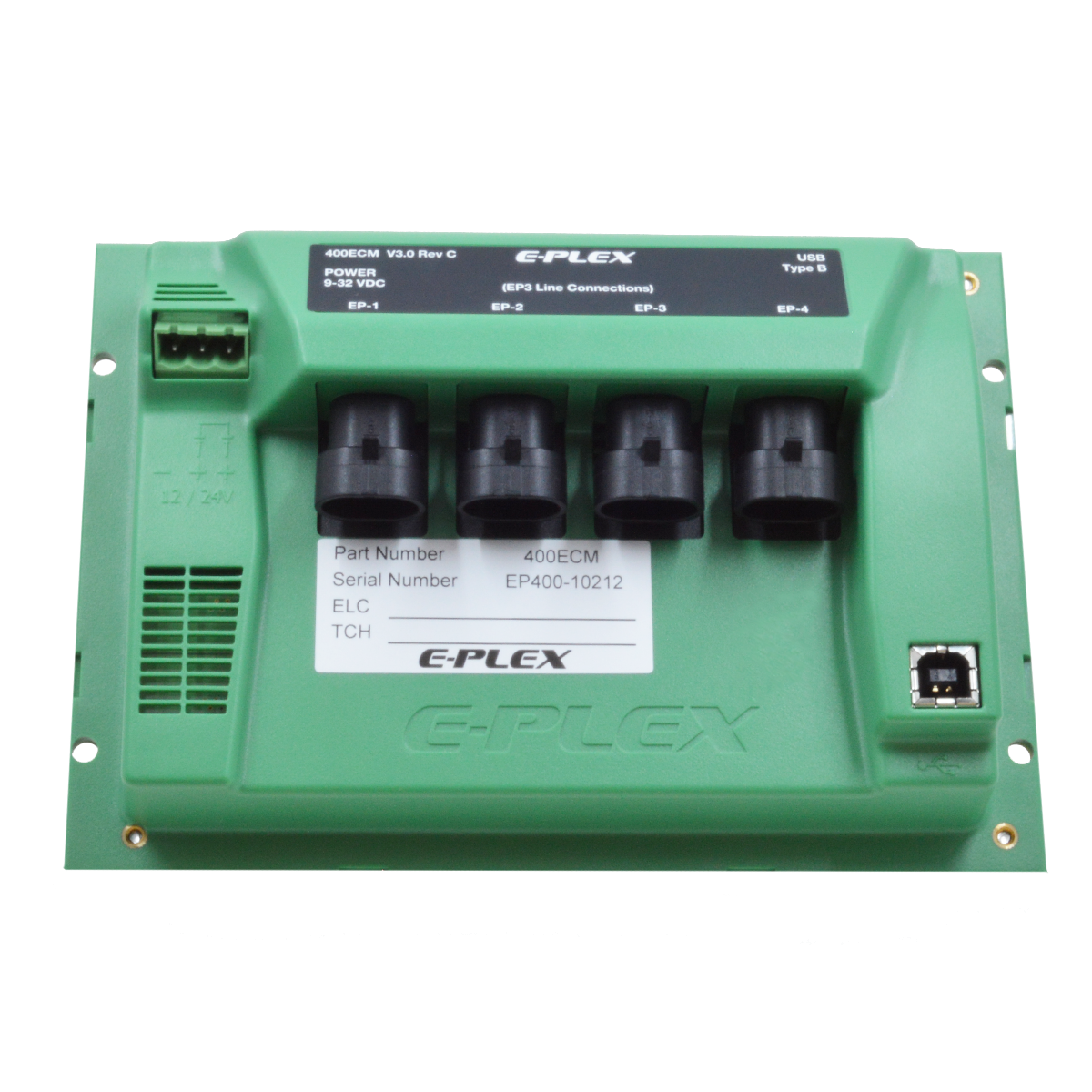

• Rear 10-pin RS-232 monitor port and front USB
service port (optional cables required).
• LEN capacity 250.
The E-Plex 400ECM series combines a master programmer and controller functionality with a customizable
touch-screen in one low-cost interface. The 400ECM is housed in a thin structure that extends less than 1/2”
from the dash or wall surface. The 400ECM is capable of monitoring and controlling tanks, pumps, lighting,
HVAC, gensets, engines and electronic systems.

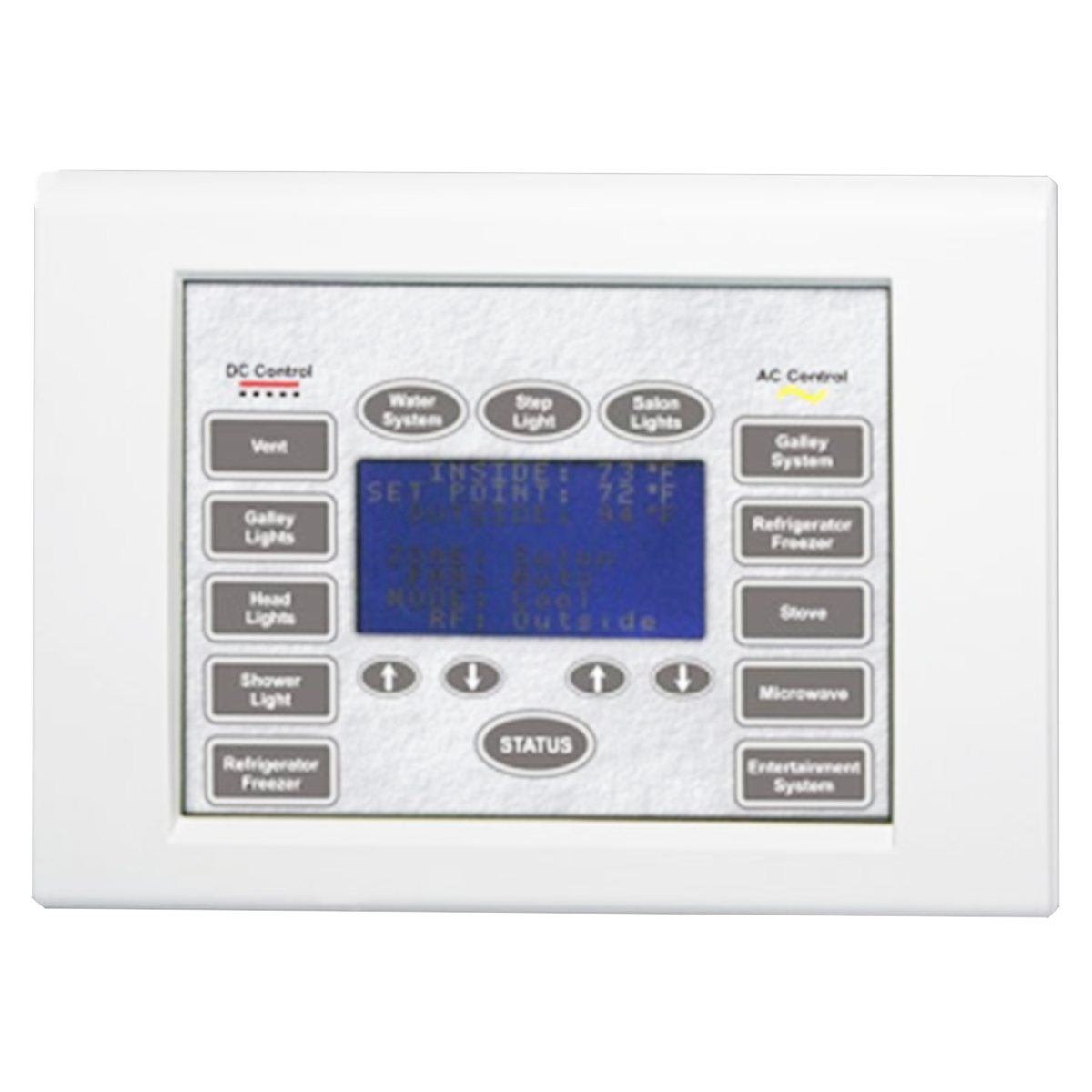

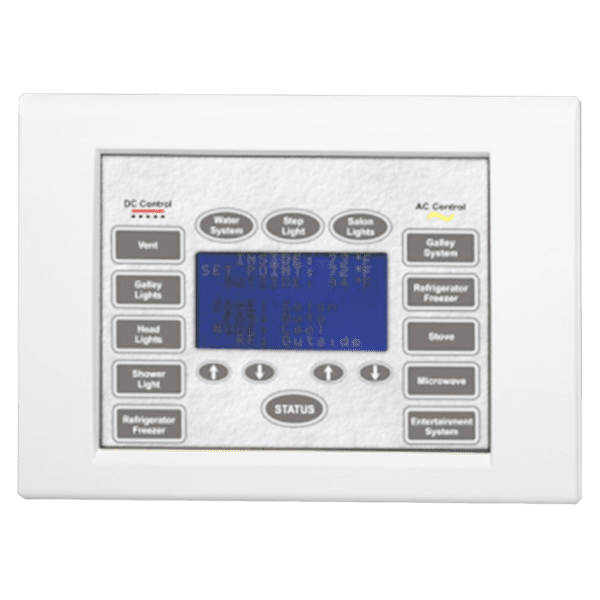

A 128-character display (8 x 16) provides information, including alerts and diagnostics, from any of the
modules within an E-Plex system. Customers have the opportunity to define custom artwork which is EL
backlit within the touch-screen to provide the end user with an intuitive E-Plex system control interface.
4 in stock (can be backordered)
