• Helm mountable.
• 7” diagonal color LCD touch screen with
• 480 x 234 screen resolution, 16-bit true color.
• 256KB of onboard memory including a master
record of configuration data.
• Rear USB service port.
• Custom touchscreen graphic design and layout
created within E-Logic software.
• Custom dynamic and static graphics provided via
color touch screen and touch overlay areas.
• Landscape & Portrait Orientation Options.
• LEN capacity 12V – 100, 24V – 200.

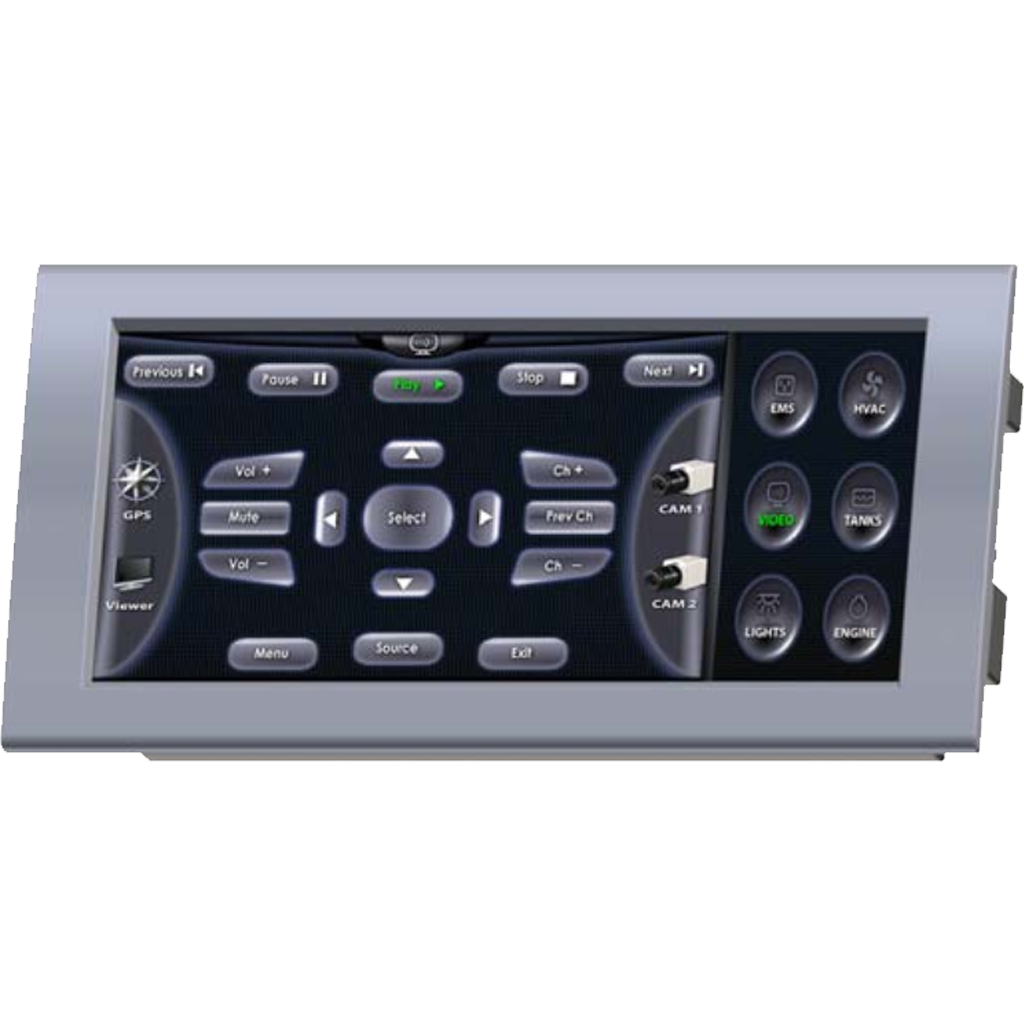

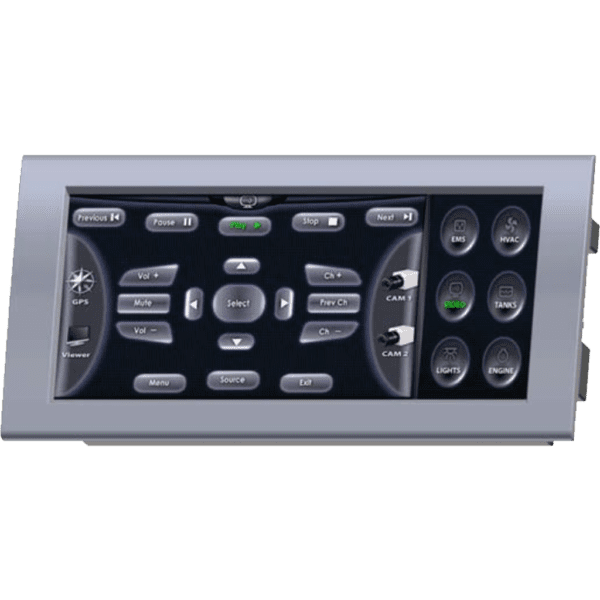

The E-Plex 500CCM series combines master programmer and controller functionality with a colour touch
screen interface, producing a singular, robust display and control solution for any E-Plex System. Dynamic
touch screen graphics and static touch overlays give you the ability to provide a unique appearance while
maintaining a constant interface.
The 500CCM is compatible with existing E-Plex modules and provides advanced system status and
configuration capabilities. Combining the 500CCM with other AC distribution, DC distribution, digital I/O,
sensing, user interfaces and system interface modules allows you to configure a system to meet your
