• LED color confguration, choose from a 64-color
palette via E-Logic.
• Each LED can be confgured with up to four
unique system-status colors.
• Interchangeable cams to create different switch
• Laser-etched actuators (customer-specifed
• Rocker switch uses optical interrupters (no
• Panel assembly is weather resistant and the
board is conformal coated. External use requires
additional physical protection to suit application.
• LEN value 17 to 25.

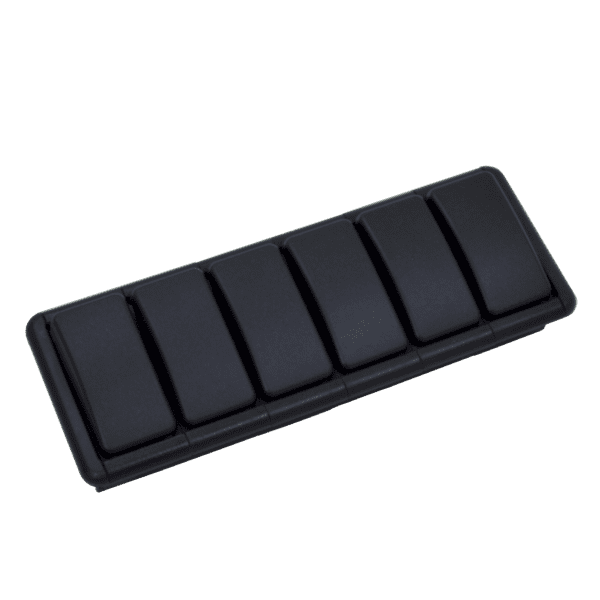

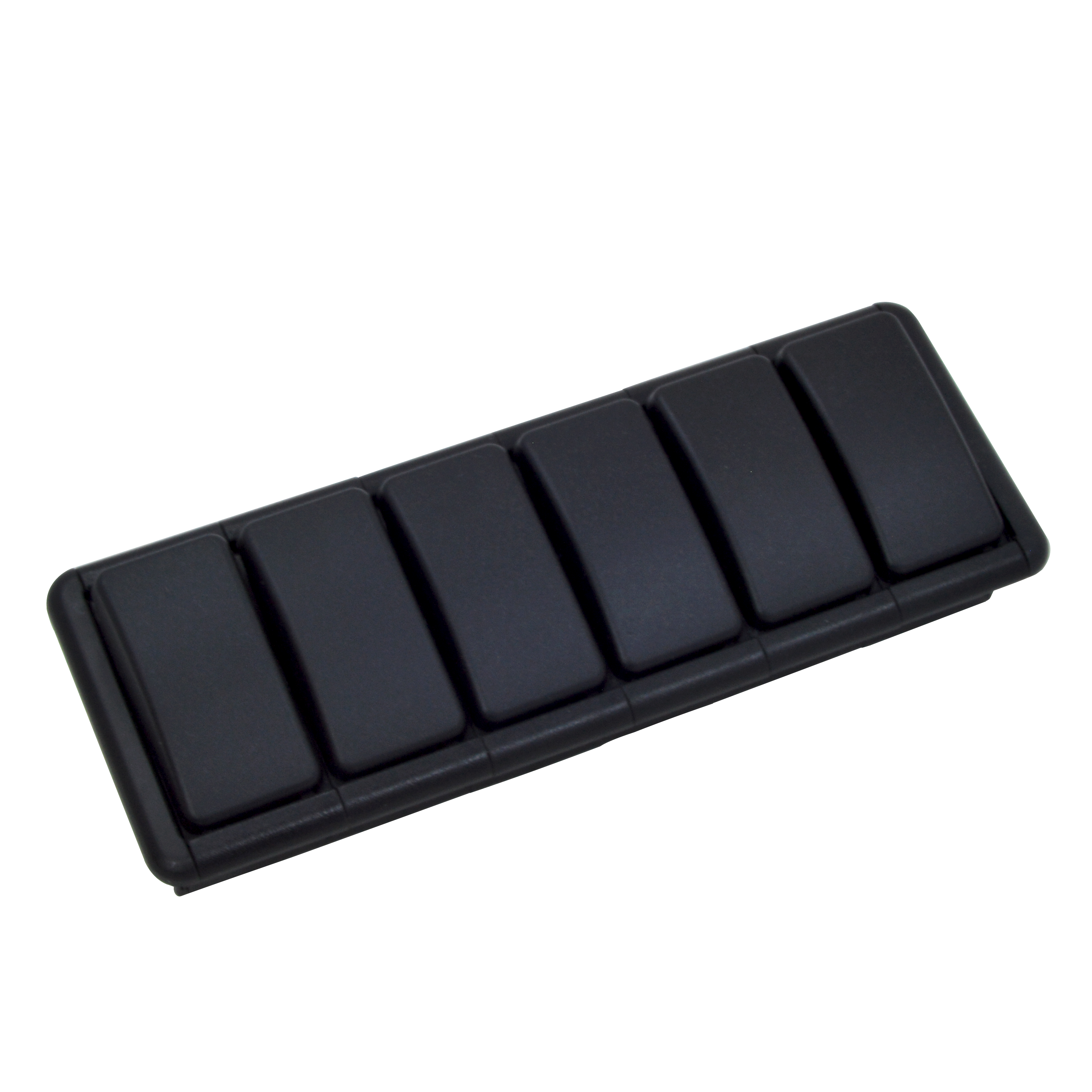

The E-Plex 428RSP series; is a programmable, multi-color LED, rocker switch panel designed to operate
within an E-Plex system. This innovative new product incorporates independently controlled LEDs, allowing
custom-configured color selection on a per LED basis. Via E-Plex software, each LED is capable of being
configured to produce up to 64 unique colors without the need for special ordering or assembly.
The 428RSP utilizes optical interrupters to create a switch output, which means there are no electrical
contacts within the switch. The 428RSP provides interchangeable cams, including 1 & 2 position momentary,
2 & 3 positions stationary and 2 positions momentary / 1 position stationary switches. These cams are
designed on a simple snap-in platform that allows for easy and inexpensive assemblies and modifications. In
addition, switch banks greater than eight positions can be combined by dovetailing multiple units together.
Lead time for modules where actuators require custom laser engraving is usually 4-6 weeks.
If no pictures of the actuators were provided, the new module would be shipped with blank actuators.
3 in stock (can be backordered)
