• 8 Relay Outputs up to 250VAC.
• 20A Max per channel, 50A per L1/L2.
• L1/L2 AC inputs can be tied together or
• Independent hydraulic magnetic circuit breakers
for each channel.
• Voltage feedback of circuit breaker status.
• Current / voltage / frequency monitoring of AC
• Optical isolation from low voltage systems.
• Manual override capabilities.
• LEN value 2.

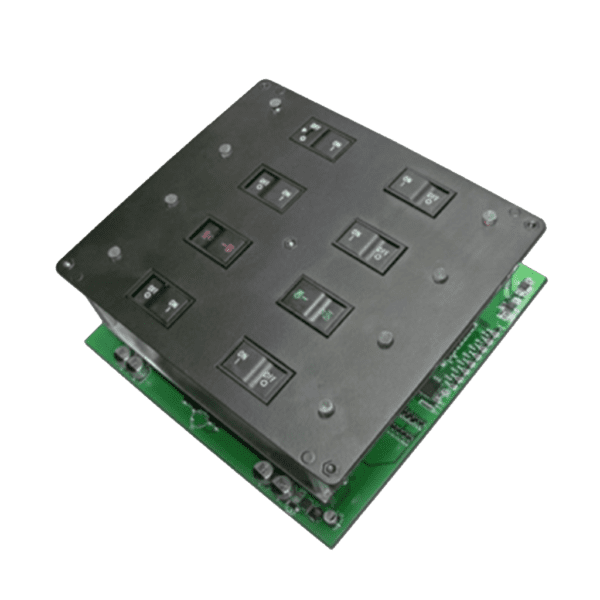

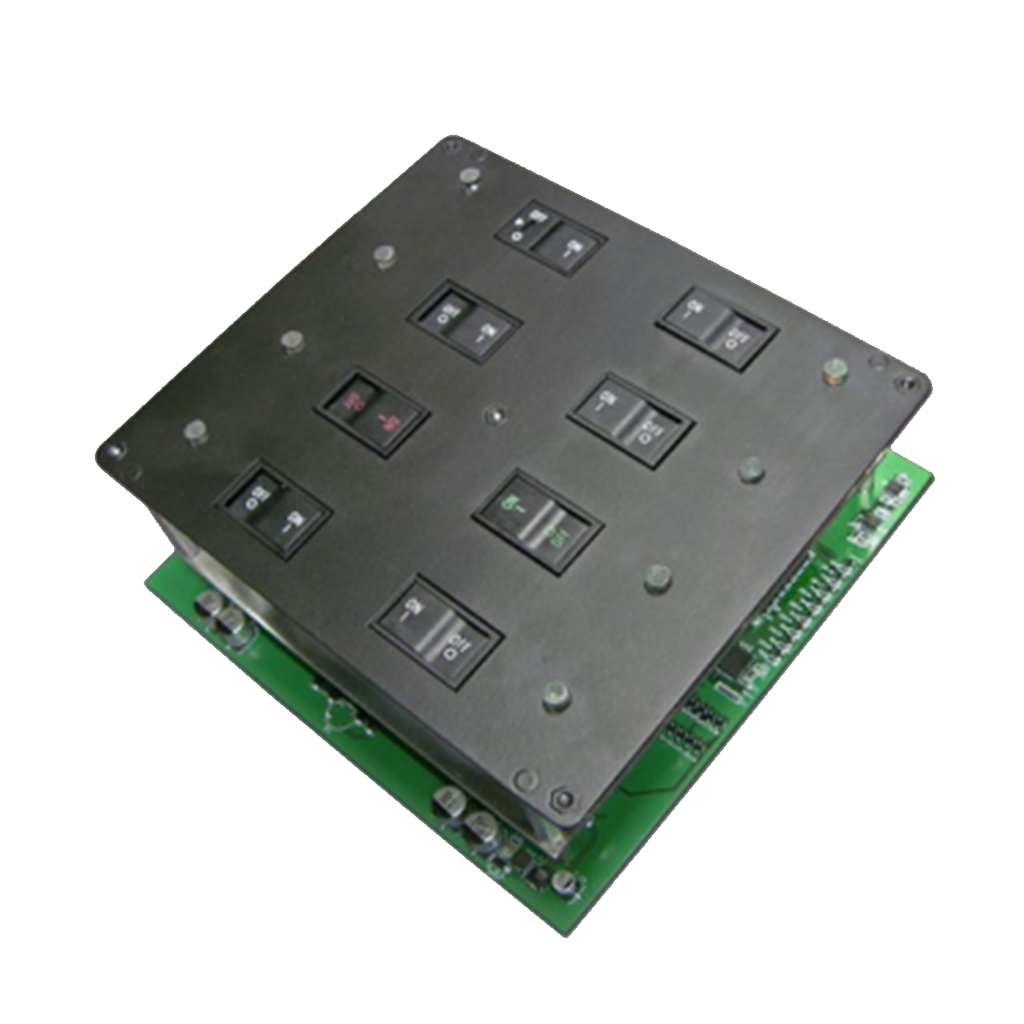

The E-Plex 389DMAC series has been designed to simplify electronic systems wiring by providing more
control and monitoring of AC loads. The module can be used in single-phase 110 or 220 applications. It
allows the designer to take advantage of advanced energy management capabilities such as intelligent load
shedding to prevent unnecessary resetting of circuit breakers.
Built-in redundancy incorporates resettable hydraulic / magnetic circuit breakers for each channel. Local
electronic override capabilities allow independent operation of the device loads.
Available on backorder
