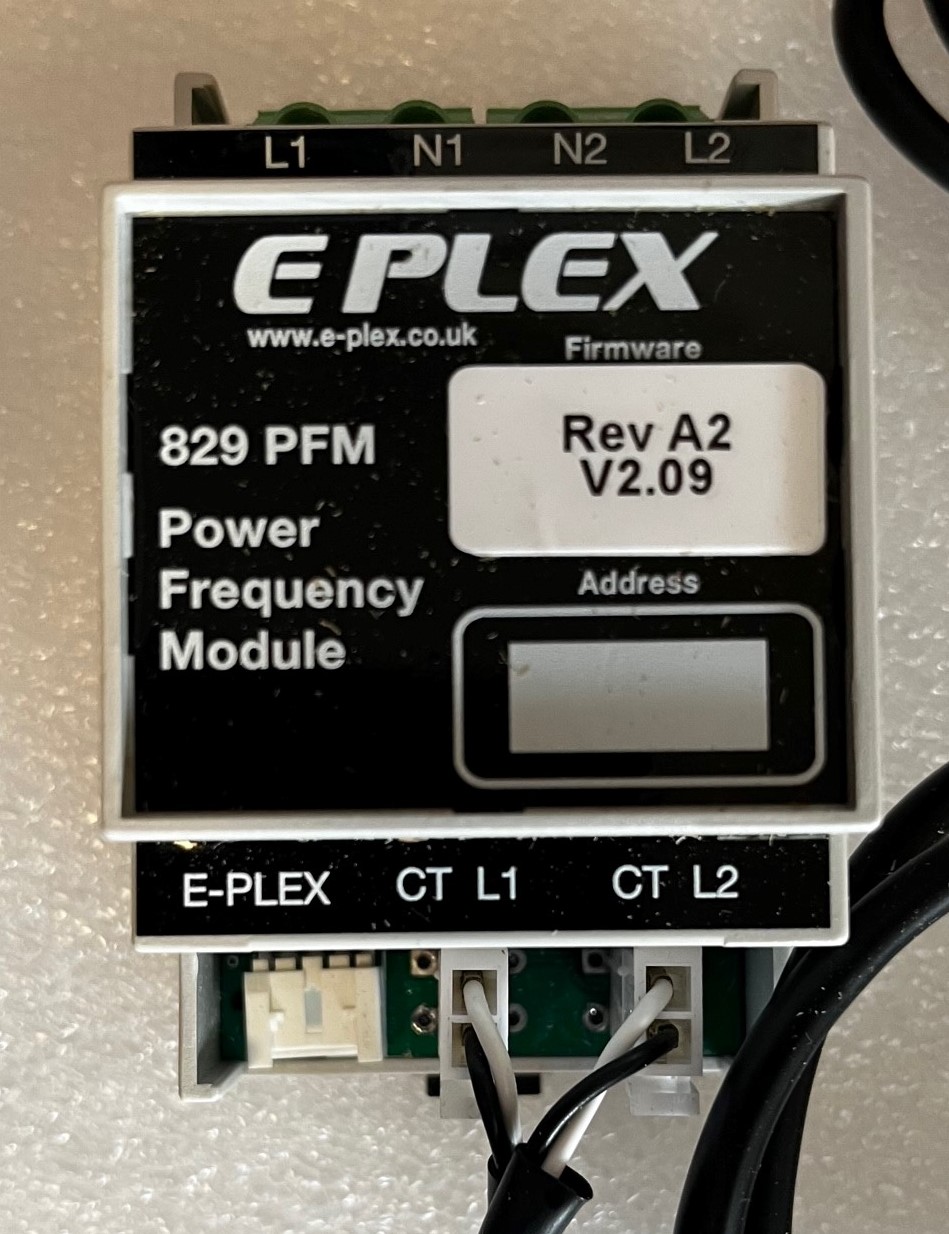

829PFM

$500.00

The E-Plex 829PFM can be used to measure the voltage, current, and frequency of up to two independent
AC mains supplies.

Can be configured to emulate a 336PFM to the connected E-Plex bus. (Note features limit to the capabilities of the 336PFM)



Available on backorder

• E-Plex powered.
• Two independent channels.
• Each channel measuring.
• True RMS AC voltage.
• True RMS AC current
• Frequency

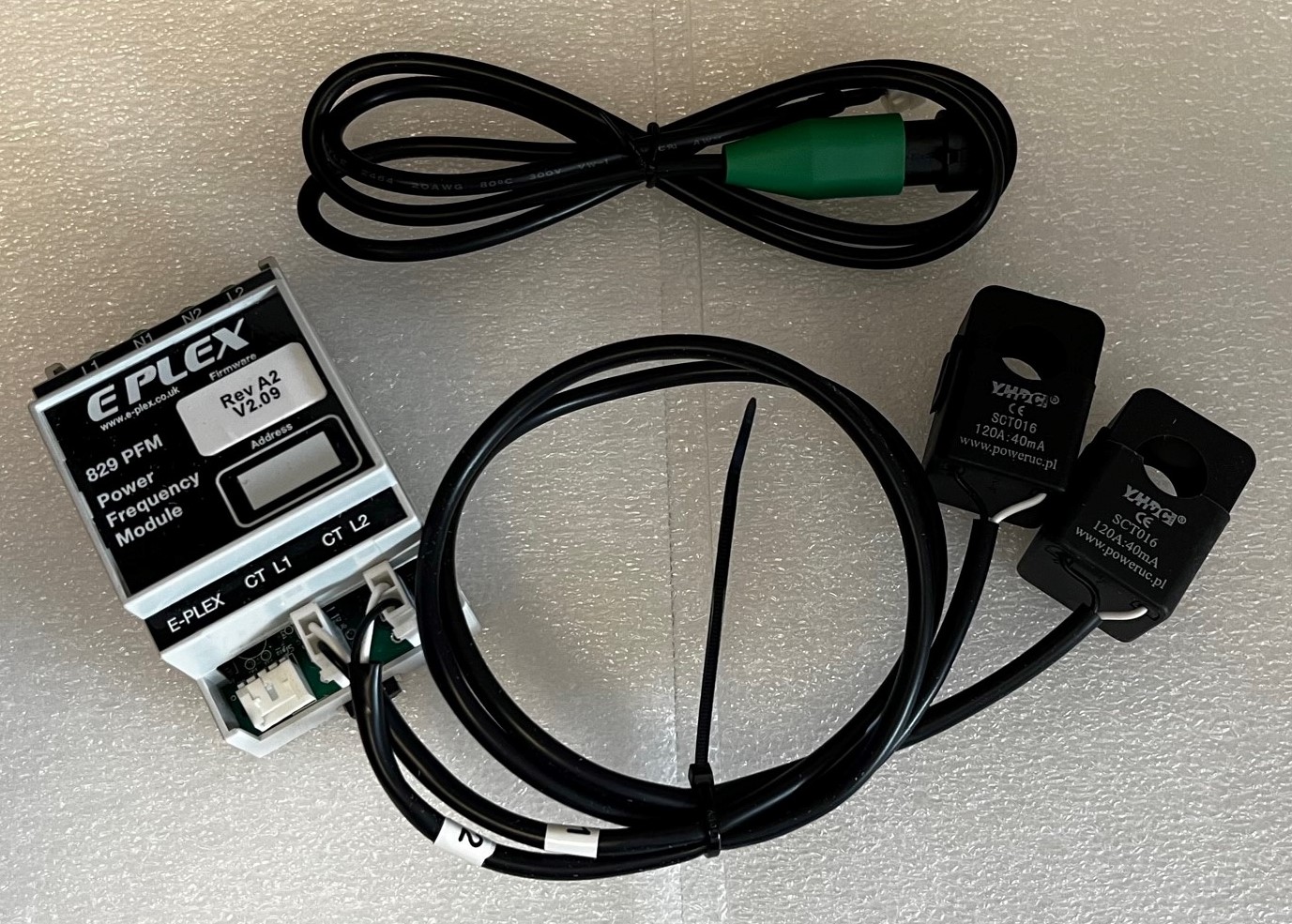

• Power                                                                                                                                                                                                                                                                                                                                                       • Easy to fit split-core current sensors with
1m leads.
• All supply inputs isolated from E-Plex with
4kVrms dielectric strength.
• LEN value 4.



Weight 16 oz
Dimensions 6 × 5 × 1 in
Download datasheetFile Size: 2 MB
